Product Parameters
Product FeaturesWheel Skid Steer loaderCrawler skid steer loader
ModelWoer-S45
Woer-S65Woer-T50Woer-T65
Operating load (kg)70010507001000
Max Speed(km/h)10101012
Rated flux (L/min)80898089
Tire(track) model10-16.5NHS12-16.5NHS300X52.5300X52.5
Rated power (Kw)37KW55KW45KW55KW
Fuel tank capacity (L)70755090
dead weight (kg)3000340030004200
self weight bucket (kg)2700340028003800
Bucket capacity (m³)0.40.50.40.5
Overall operating height (mm)4042398736603900
Hheight to top of cab (mm)2171213621902250
Without bucket length(mm)2325252721702450
Overall length with bucket(mm)3276342831503400
Dumping height(mm)2342241019902270
Width (mm)1726.5180514221782
Bucket width (mm)1742188017001830
Height to bottom of level bucket(mm)2909286225002790
Dumping angle at maximum height(° )37.5324040
Height to bucket hinge pin (mm)3079301827302970
Dumping reach(mm)55085010401120
Rollback o bucket on ground(° )20.5233030
Rollback of bucket at full height(° )96.595100100
Wheelbase(mm)991107412301500
Ground clearance(mm)185205230200
Angle of departure(° )202018.518.5
Front turning radius without bucket(mm)11881320.510641230
Front tuning radius(mm)2209.52096.518252010
Rear tuning radius(mm)1481.51647.512641720
Rear axle to bumper (mm)9291057590730
Tread width (mm)1462.5149810221482

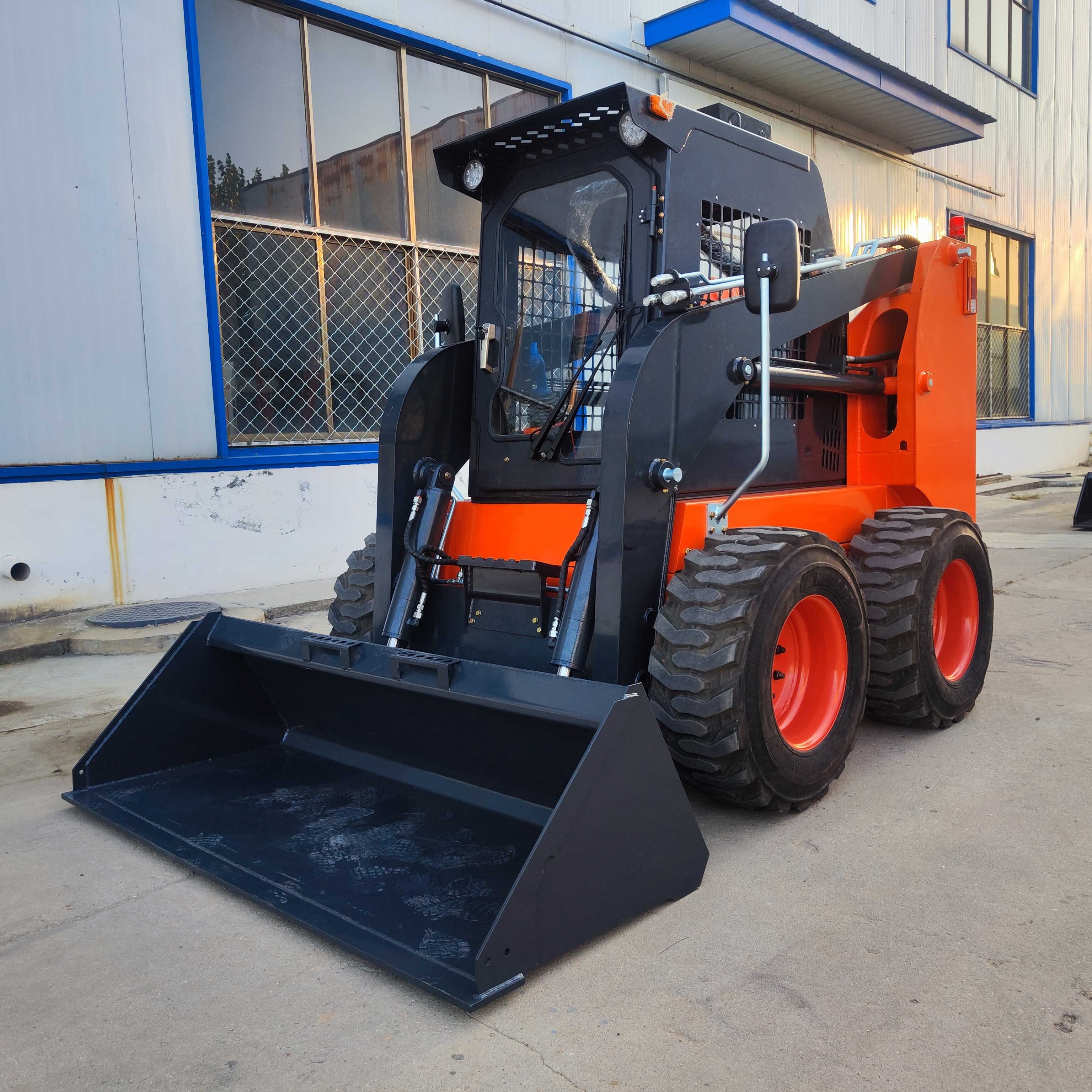

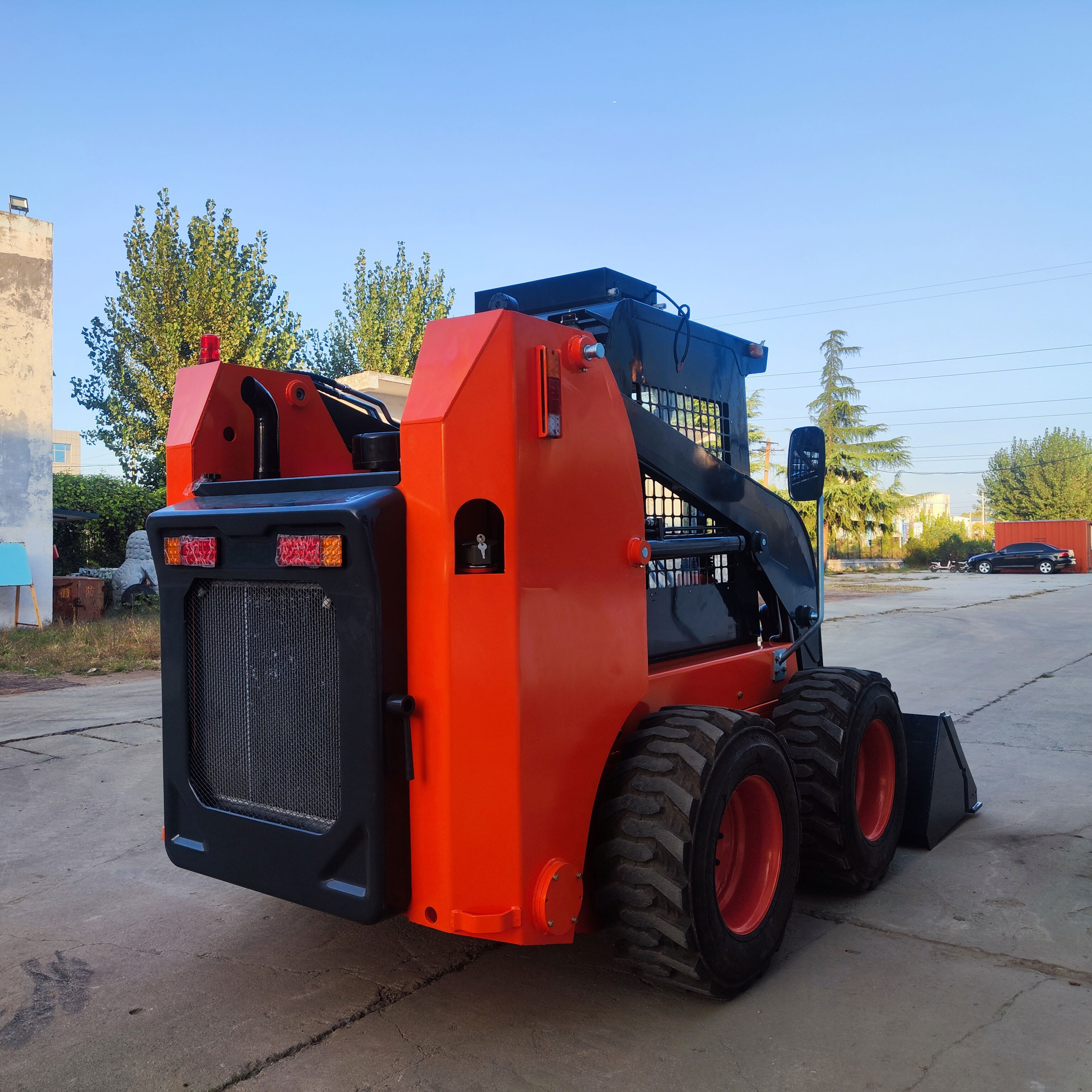

Product Display

FREE SHIPPING CE/EPA Hot Selling Mini Crawler/Wheel Chinese Manufacturer Diesel Skid Steer Loader

High Cost Hot Selling Effective Skid Steer Loaders

Our premium skid steer loaders combine robust performance with exceptionally intuitive operation. Designed according to rigorous ergonomic principles, the operator interface ensures rapid comprehension and mastery. New operators achieve productivity quickly with minimal training time, significantly lowering the skill threshold. This translates directly into reduced labor costs, minimized downtime, and accelerated project timelines – delivering a strong return on your equipment investment.

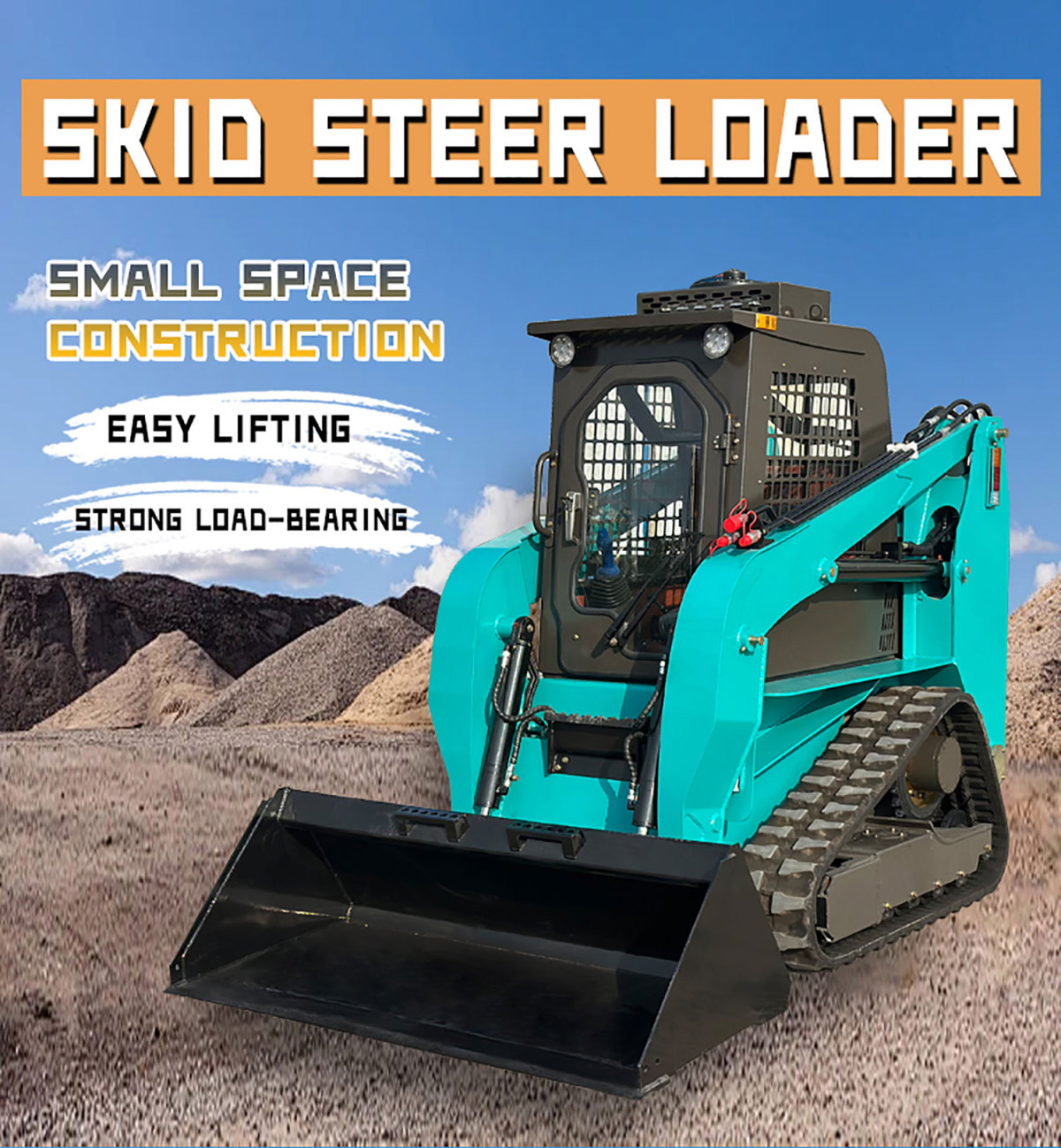

crawler mini skid steer loader

mini skid steer loader attachments

Shandong Woer Machinery Technology Co., Ltd. located in Jining city, founded in 2012, is engaged in producing and exporting the wood splitter,wood chipper,Lawn mower,mini loader,skid steer loader,We have high quality products, considerate service and accept customization. Such as print your own logo, your brand name and more.. Adhering to the quality of friendship, mutual benefit, unity and prosperity, we are ready to work with the industry elites to chart a bright future together. We have professional engineers to provide you with customized professional services. They have many years of working experience. Foreign trade salesman is after years of professional training, with a lot of professional experience and thoughtful service attitude, will provide you with professional, meticulous, personalized products and services. We are sure to provide you with the quality products you want.We promise that as your business partner, Our enthusiasm will never fade.

We are a leading manufacturer and supplier of wood splitters, branch chippers, lawn mowers, and skid steer loaders. Through continuous technological innovation and unremitting pursuit of quality,

we are committed to providing high-quality products and services to customers around the world.

We sincerely invite suppliers from all countries to join us for win-win cooperation.

1.Powerful power system

High-power engine: Equipped with high-power diesel engine or other power device, the output power is usually above 50 kilowatts, or even higher, which can provide strong power support to meet the needs of various high-intensity operations.

Efficient hydraulic system: The hydraulic system of large skid loader has large flow and high pressure, which can quickly drive the working device to perform lifting, tilting, rotation and other actions to improve work efficiency. At the same time, the advanced hydraulic control system can also achieve precise control of the working device to ensure the accuracy and stability of the operation.

2.Excellent load and loading capacity

High rated load: The rated load is generally above 1.5 tons, and some large models can even reach 2 tons or more. It can carry a large amount of materials or goods and is suitable for heavy engineering operations, such as the handling of large construction materials, earthwork projects, etc.

Large-size bucket and working device: The equipped bucket has a large capacity, generally above 1 cubic meter, and can load more materials at a time. In addition, various large working devices, such as large grabs, breakers, milling machines, etc., can be replaced according to different operation requirements to complete more complex and arduous tasks.

3.Excellent maneuverability and flexibility

Skid steering function: The skid steering technology is adopted to achieve in-situ steering by controlling the speed difference of the wheels on both sides. The minimum turning radius is almost zero, and it can flexibly turn and operate in very narrow spaces, adapting to various complex working environments, such as narrow alleys, indoor spaces, and urban streets.

Good passability: Although it is a large equipment, the design still focuses on passability. Its compact body structure, short wheelbase and large ground clearance enable it to easily pass through rugged roads, low doorways and narrow passages. Some large skid loaders are also equipped with crawler walking devices, which further improves the passability on soft, muddy or rugged terrain.

4.Multifunctional operation capability

Quick replacement of attachments: Equipped with quick connectors, different working devices can be replaced within minutes, realizing one machine for multiple uses, such as shoveling, stacking, lifting, digging, drilling, crushing, grabbing, pushing, loosening, ditching, road cleaning and road compaction, etc., greatly improving the utilization rate and operation efficiency of the equipment.

Wide range of application areas: Due to its versatility, large skid steer loaders are widely used in many fields such as infrastructure construction, industrial applications, dock loading and unloading, urban street reconstruction, residential construction, garden maintenance, airport runway construction, etc. It can be used as auxiliary equipment for large-scale engineering construction machinery, and can also independently complete some small engineering projects.

5.Good operating comfort

Spacious and comfortable cab: The cab space is spacious, providing operators with sufficient head and leg space, reducing fatigue from long-term operations. The seat usually adopts a suspended design, which can automatically adjust according to the operator's weight, providing good support and comfort, and also has a shock absorption function to effectively reduce bumps and vibrations.

Humanized operation layout: The operation control components are reasonably arranged and conform to ergonomic principles. Commonly used control buttons, joysticks, etc. are set within the reach of the operator for easy operation. Some high-end models are also equipped with an electronic control system that can achieve precise control of the equipment, while also providing various operation prompts and fault diagnosis information to improve the convenience and safety of operation.

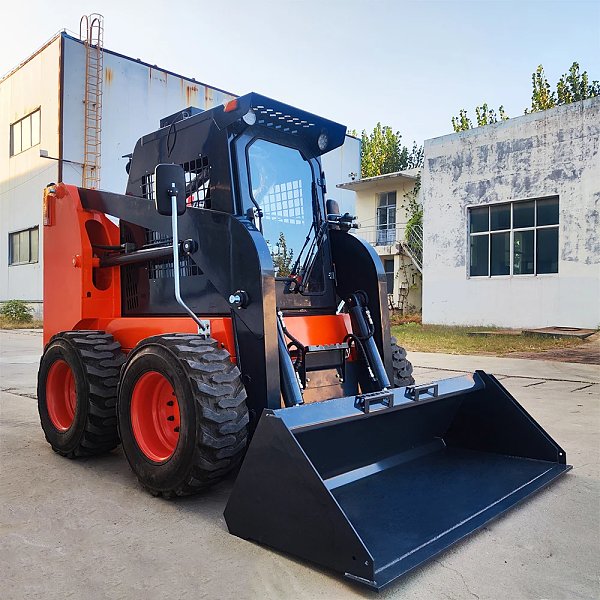

wheel mini skid steer loader

china skid steer loader

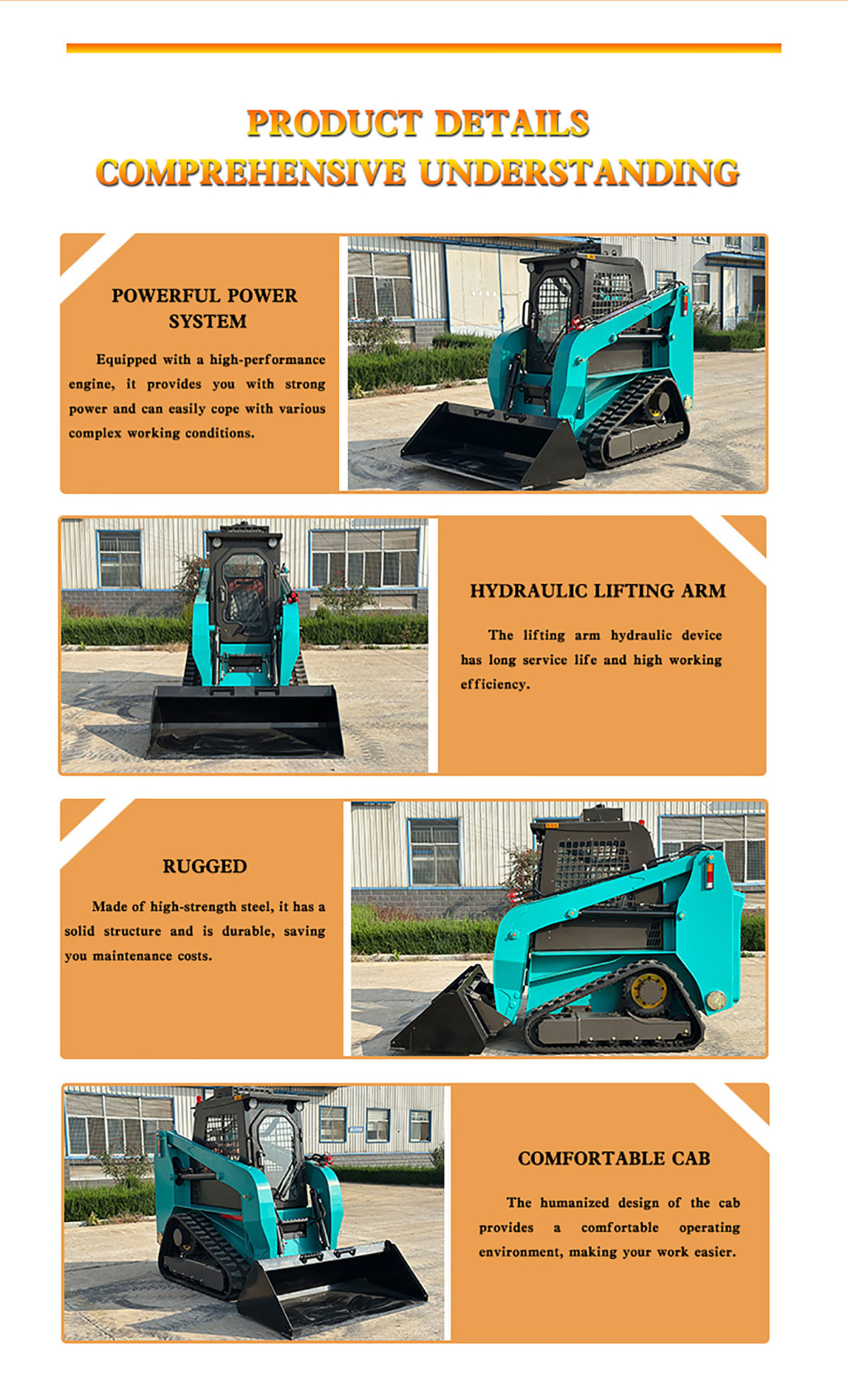

crawler skid steer loader

track skid steer loader diesel

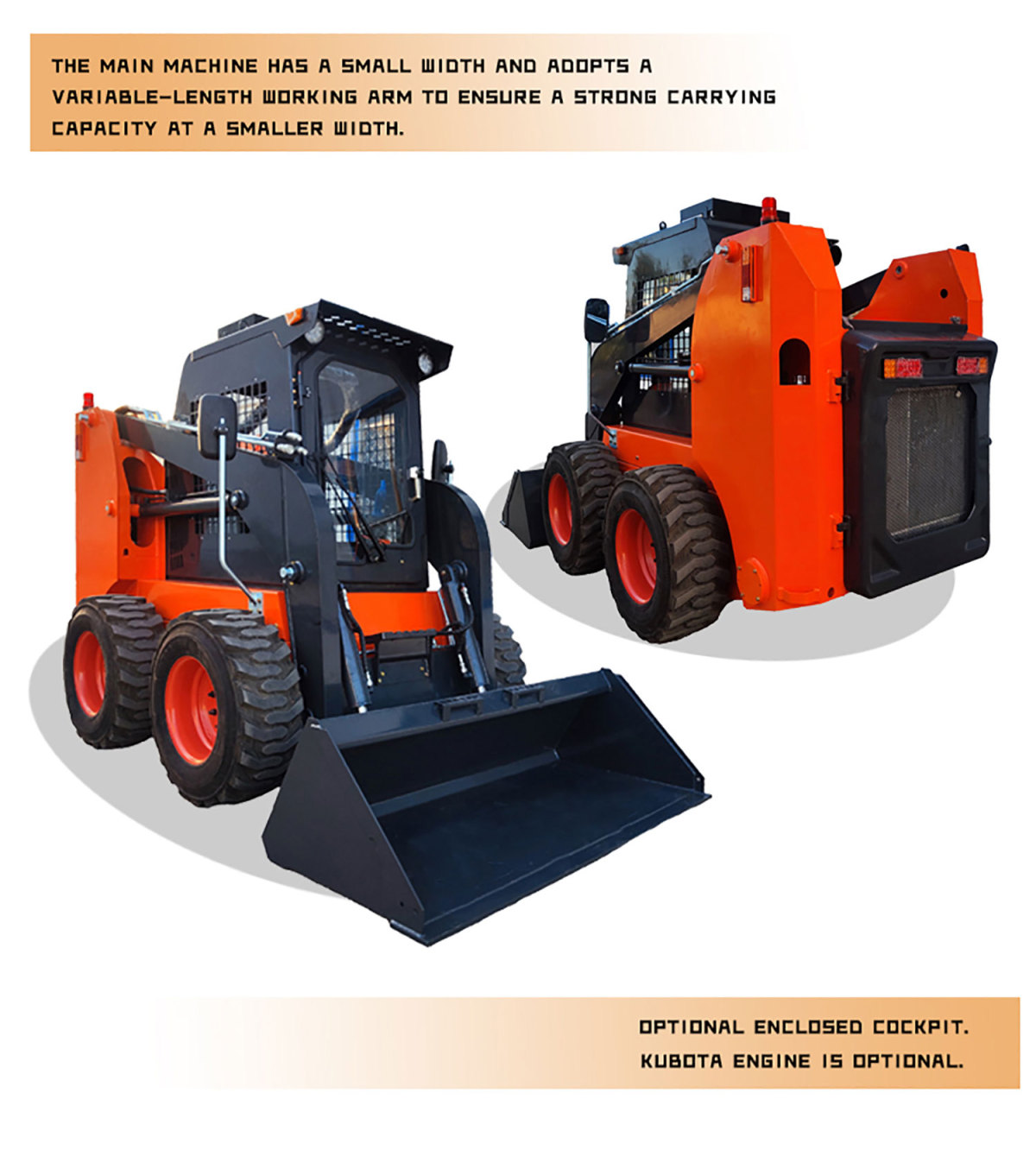

skid steer loader china



1.You are a trader or a manufacture?

We are an industry and trade integration business, our factory located on Shandong Jining,and our sales department is in City centre of Jining.

The distance is 30Kms, 0.5 hours.

2. How about the payment terms?
We usually accept T/T or L/C. other terms also could be negotiated.
3. What is your minimum order?
It depends on what you are buying.
4. What is your delivery time?
FOB Qingdao port : 15-30 days . If there are any parts in stock , our delivery time is only 10 days.
5.What about Quality Control?

We have a perfect QC system for the perfect products. A team who will detect the product quality and specification piece carefully, monitoring every

production process until packing is complete, to ensure product safety into container.

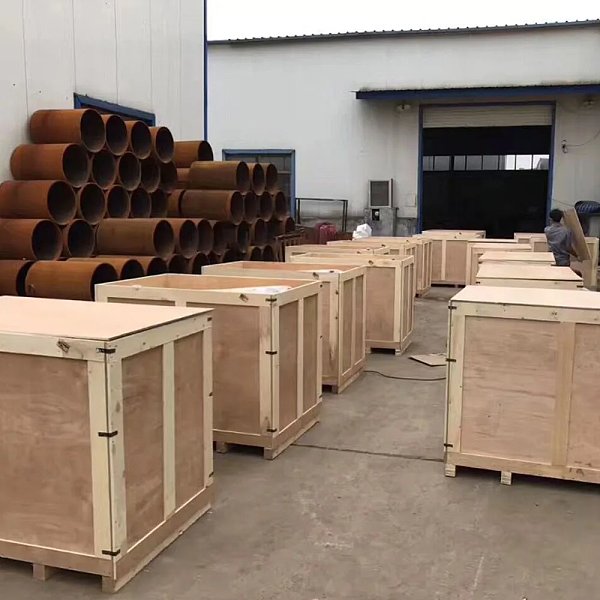

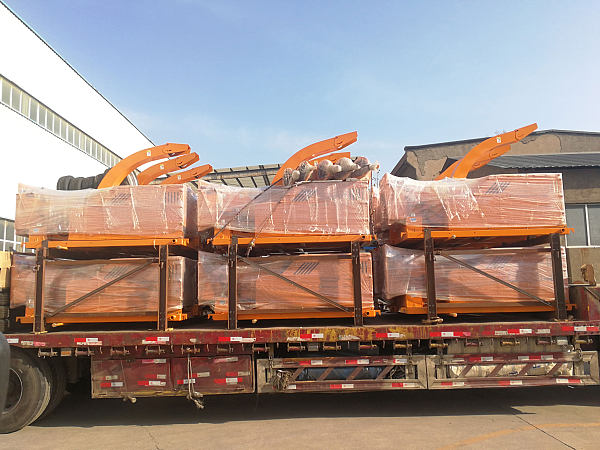

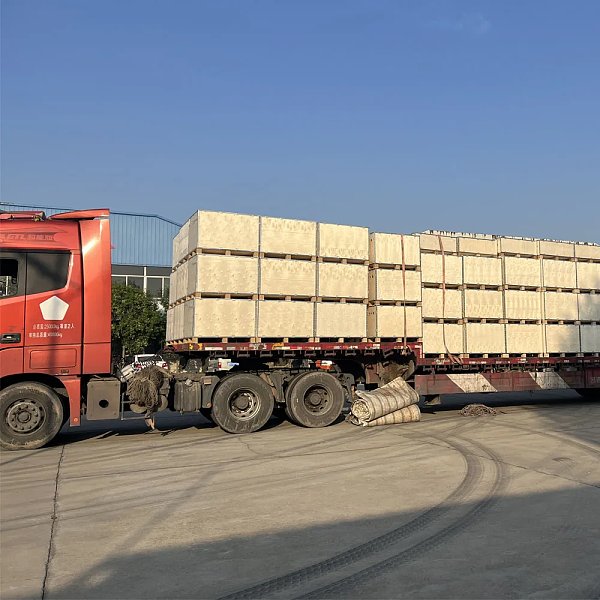

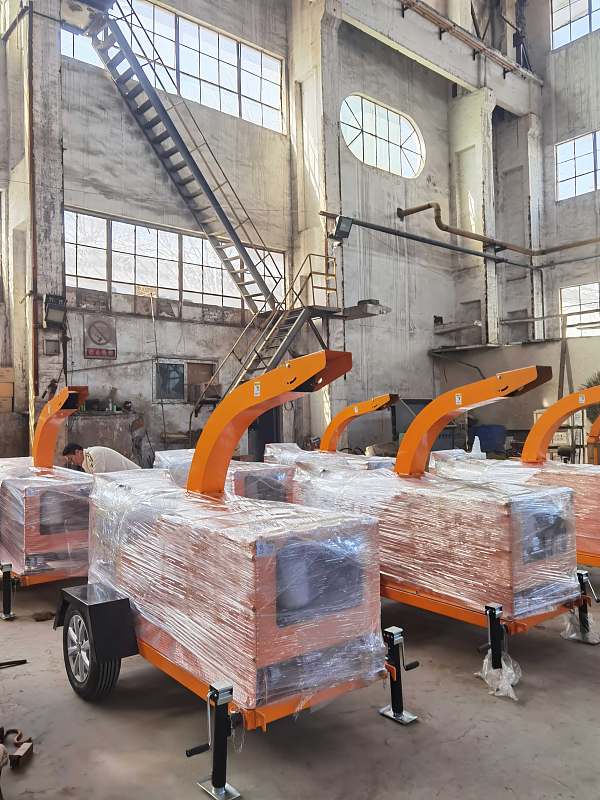

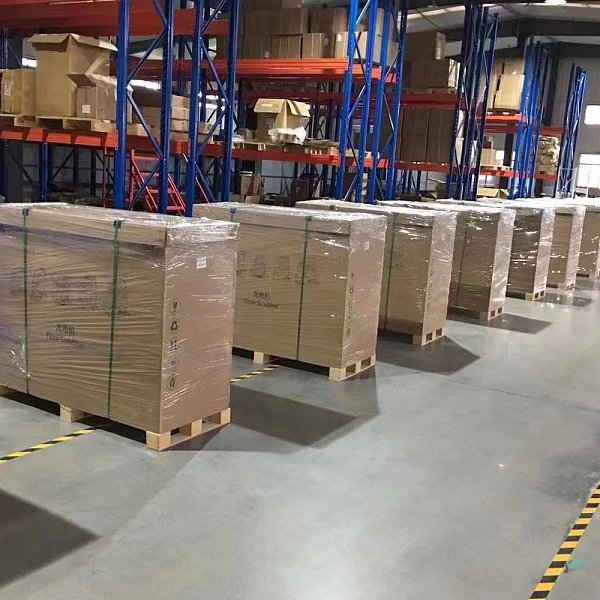

Packaging and Shipping
