Product Parameters
Product featuresMini Dumper
ModelWoer-F500
Woer-F500S
Woer-F1000S
Woer-F1200
Net weight414kg535kg880kg850kg
Maximum load500kg500kg1000kg1200kg
Cargo box capacity200dm³200dm³450dm³594dm³
Chassis width700mm700mm850mm850mm
Track width180mm180mm180mm180mm
Track ground length900mm900mm1000mm1000mm
Chassis ground clearance110mm110mm110mm110mm
Tipping methodHydraulic dumpHydraulic dumpHydraulic dumpHydraulic dump
Tipping angle90°90°90°90°
Unloading height from the ground260mm1050mm1300mm1300mm
Travel performance speed2.88km/h2.88km/h5km/h5km/h
Minimum turning radius1.15m1.15m1300mm1300mm
Track center distance520mm520mm670mm670mm
Climbing ability20°20°20°20°


Product Display

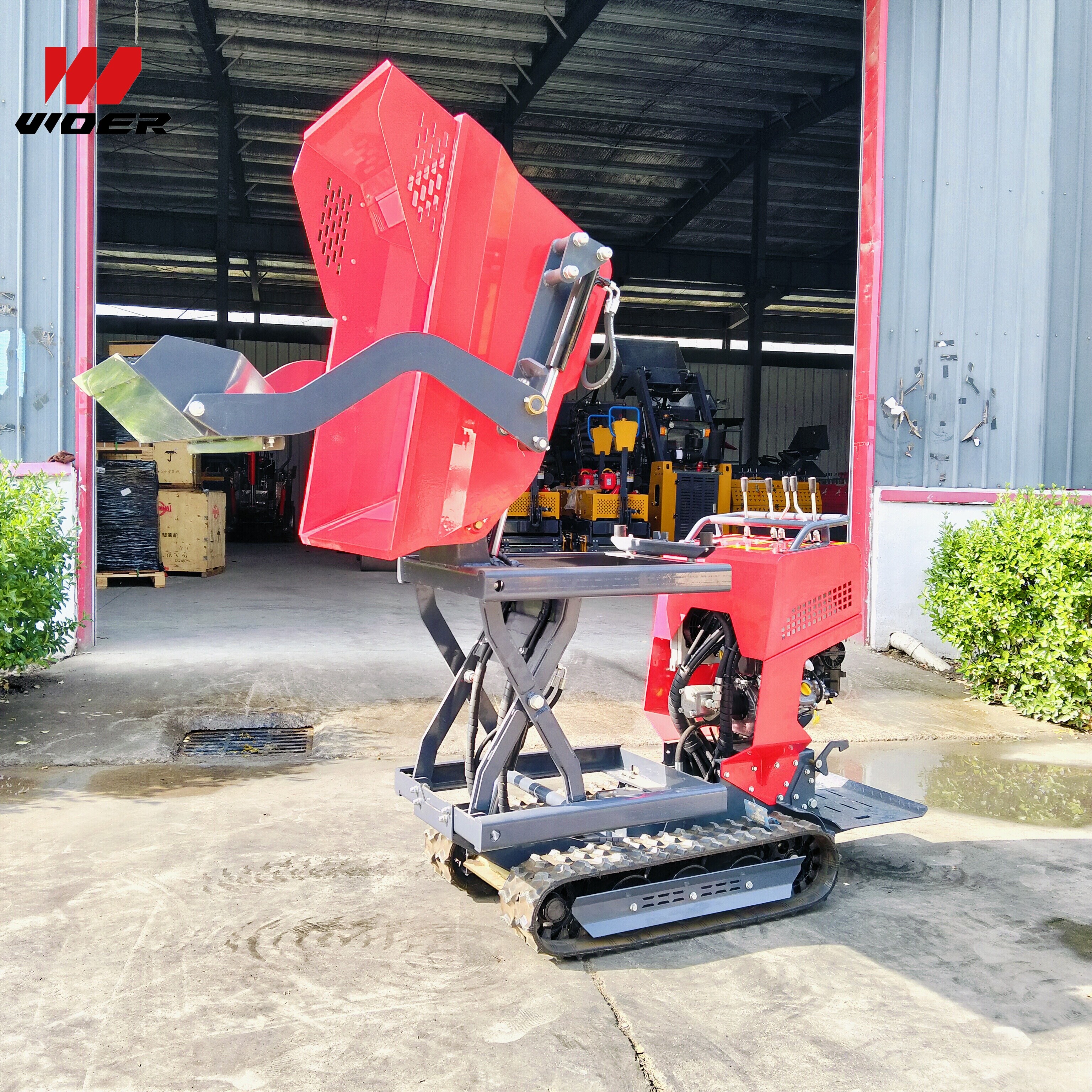

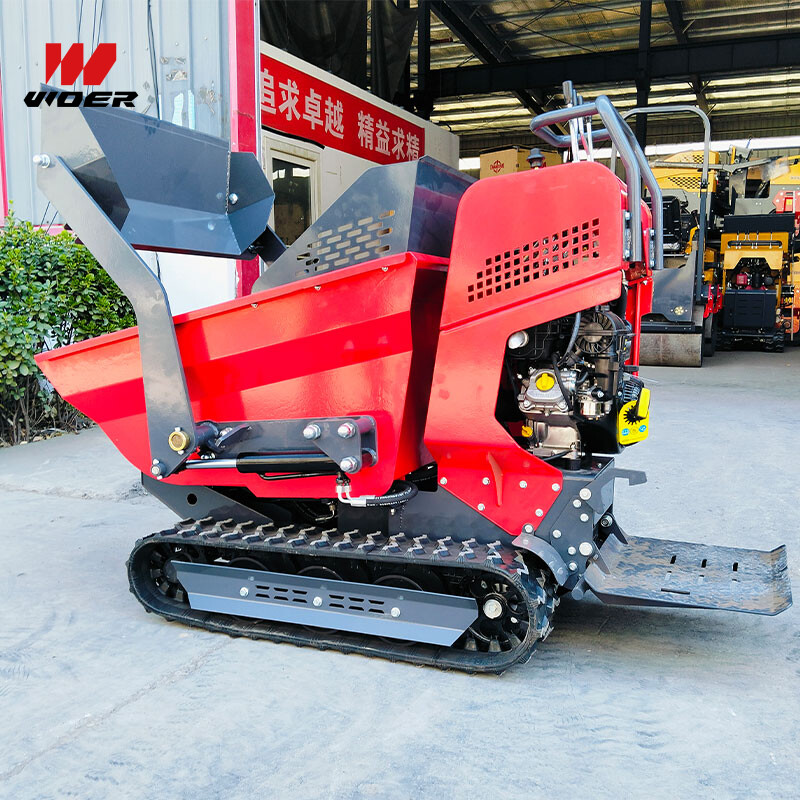

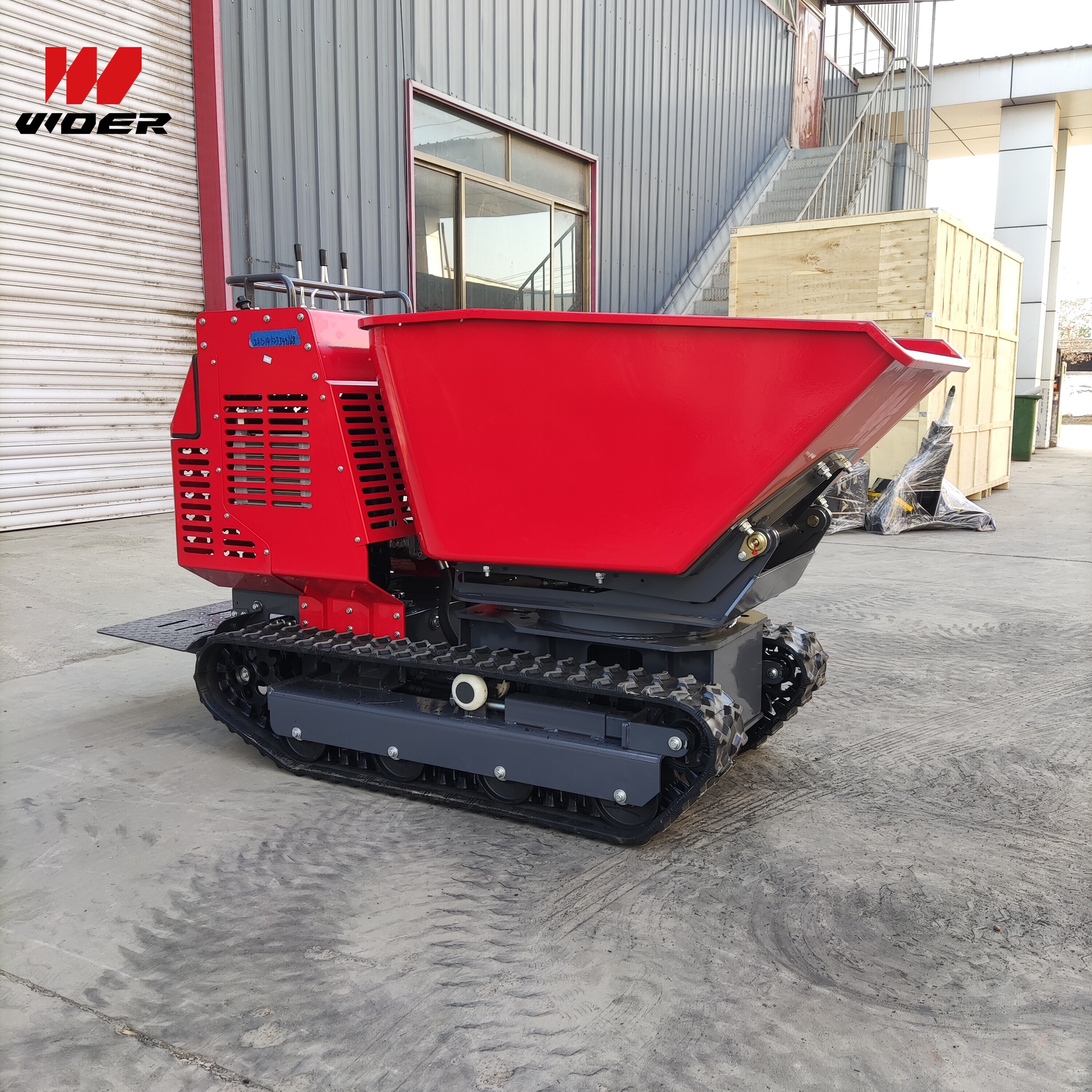

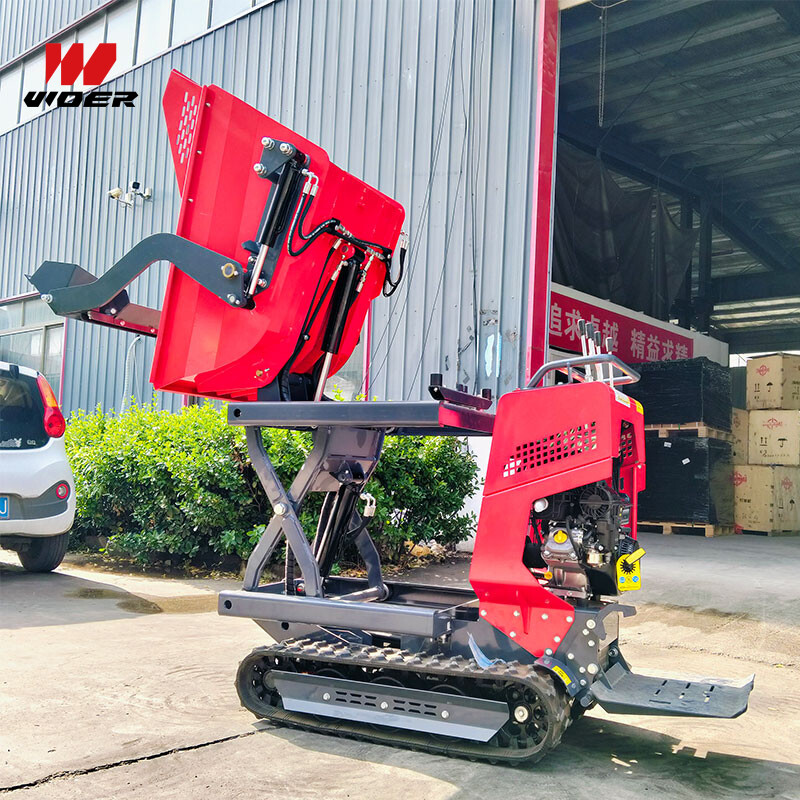

Garden Rubber Track All Terrain Hydraulic Mini Tracked Dumper

45° tipping angle, 20 s cycle time; controlled from cab or remote for safer bulk unloading. 4-wheel drive, skid-steer, off-road tires; climbs 30° slopes and muddy trenches.

mini dumper

Shandong Woer Machinery Technology Co., Ltd. located in Jining city, founded in 2012, is engaged in producing and exporting the wood splitter,wood chipper,Lawn mower,mini loader,skid steer loader,We have high quality products, considerate service and accept customization. Such as print your own logo, your brand name and more.. Adhering to the quality of friendship, mutual benefit, unity and prosperity, we are ready to work with the industry elites to chart a bright future together. We have professional engineers to provide you with customized professional services. They have many years of working experience. Foreign trade salesman is after years of professional training, with a lot of professional experience and thoughtful service attitude, will provide you with professional, meticulous, personalized products and services. We are sure to provide you with the quality products you want.We promise that as your business partner, Our enthusiasm will never fade.

We are a leading manufacturer and supplier of wood splitters, branch chippers, lawn mowers, and skid steer loaders. Through continuous technological innovation and unremitting pursuit of quality, we are committed to providing high-quality products and services to customers around the world.
We sincerely invite suppliers from all countries to join us for win-win cooperation.

  1. Ultra-Maneuverable Design
    Compact footprint: ≤2 m overall height and a significantly shorter wheelbase let the mini dumper slip into height-restricted basements, narrow alleys and indoor construction zones that standard trucks simply cannot reach.
    Tight-turn capability: A minimal turning radius—often allowing a true 360° spot turn—cuts cycle times in orchards, landscaping projects and small job sites where space equals money.
  2. Plug-and-Play Operation
    Intuitive control layout: Clearly labeled joysticks and push-buttons reduce onboarding to minutes; operators need no prior heavy-machinery license, slashing training costs and downtime.
  3. Cost & Carbon Efficiency
    Low fuel / power draw: Small-displacement engines or high-torque electric motors consume 30–50 % less energy versus full-size dumpers. Electric variants deliver zero on-site emissions, matching tightening urban environmental regulations.
    Capital-light acquisition: Simplified chassis and fewer components translate to an entry price that is often 60–70 % below traditional dump trucks—ideal for SMEs, rental fleets and rural contractors.
  4. Multi-Purpose Payload Performance
    Hydraulic tipper: Single-lever lift gives a ≥45° dump angle for clean, residue-free unloading of sand, cement, bricks or agricultural produce.
    Robust load bed: High-tensile steel frame and reinforced cargo box deliver payload capacities up to 2 t—more than enough for small-scale logistics and material handling.
  5. Easy, Low-Cost Maintenance
    Streamlined mechanics: Fewer moving parts mean quicker daily inspections and faster field repairs.
    Off-the-shelf consumables: Standard tires, brake pads and filters are available worldwide, keeping parts spend low and uptime high.

mini dumper 500kg

mini tracked dumper

mini dumper truck

mini dumper 1 ton

mini crawler dumper

wood splitter

新详情22_04

1.You are a trader or a manufacture?

We are an industry and trade integration business, our factory located on Shandong Jining,and our sales department is in City centre of Jining. The distance is 30Kms, 0.5 hours.
2. How about the payment terms?
We usually accept T/T or L/C. other terms also could be negotiated.
3. What is your minimum order?
It depends on what you are buying.
4. What is your delivery time?
FOB Qingdao port : 15-30 days . If there are any parts in stock , our delivery time is only 10 days.
5.What about Quality Control?
We have a perfect QC system for the perfect products. A team who will detect the product quality and specification piece carefully, monitoring every production process until packing is complete, to ensure product safety into container.
Packaging and Shipping
  • 微信图片_20250214104548.jpg
  • 微信图片_20250214104611.jpg
  • 0b68e357ad44e41eefd45b7d8583e33.png
  • bae6998fabf9cabd6435a3f11c1d93f.png
  • b074c9d98dc11c47802c5ec66a00815.png
  • 06cf8c8fdb5f3cfdd2690eb2280c542.png
Qualification Certificate
Factory Display
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
FAQ


Q: You are a trader or a manufacture?
A:We are an industry and trade integration business, our factory located on Shandong Jining,and our sales department is in City centre of Jining.
The distance is 30Kms, 0.5 hours.

Q: How about the payment terms?
A:We usually accept T/T or L/C. other terms also could be negotiated.

Q: What is your minimum order?
A: It depends on what you are buying.

Q: What is your delivery time?
A: FOB Qingdao port : 15-30 days . If there are any parts in stock , our delivery time is only 10 days.



Q: What about Quality Control?
A: We have a perfect QC system for the perfect products. A team who will detect the product quality and specification piece carefully, monitoring every production process until packing is complete, to ensure product safety into container.
