Skid Steer Loader Attachments



woerjx@woerjx.com



+8615628811088



Phone

+8615628811088

Product Parameters

Serial Number	Attachment Name	Suitable vehicle models	Specifications /dimensions

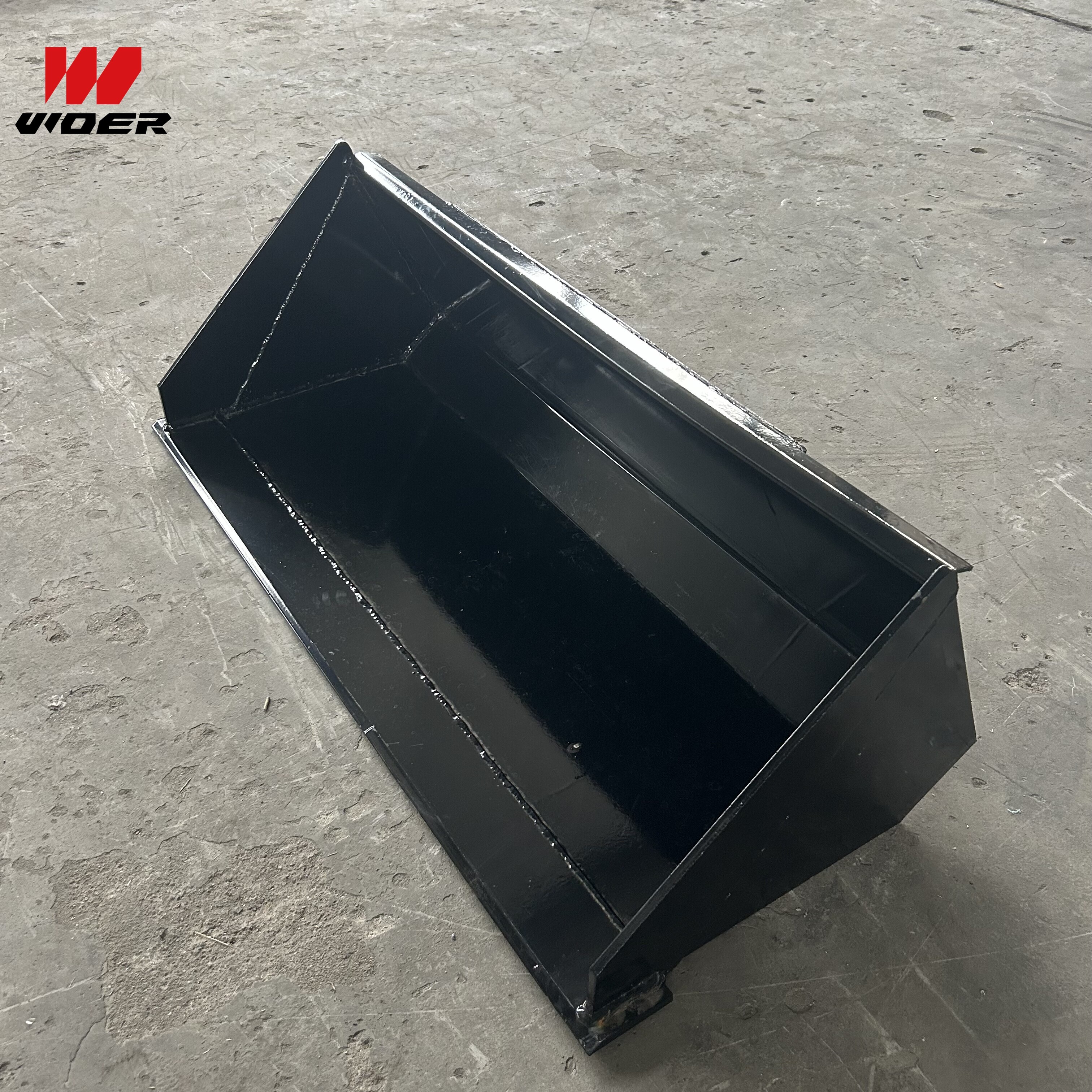

1	Standard Bucket	Full range	Size: 554x820x325/0.15m³ 519x1150x322/0.12m³	Size: 554x820x325/0.15m³ 519x1150x322/0.12m³
2	Angle Blade	Full range	Size (mm): 1100x 650 x520 Weight: 120 kg Tilt angle: Soil 30 ° Maximum inclination angle of bulldozer plate: 870mm	Dimensions (mm): 1100x 650 x520 Weight: 120 kg Tilt angle: 30° Maximum tilt angle of bulldozer: 870mm
3	4 in 1 bucket	Full range	Bucket capacity: 0.14 m ³ Size (mm): 1223x595x 525 Rated loading capacity: 109Kg Weight: 113.6Kg Bucket capacity: 0.12m ³ Size: 860x680x530 Weight: 106Kg	Bucket capacity: 0.14 m³ Dimensions (mm): 1223x595x 525 Rated load: 109Kg Weight: 113.6Kg Bucket capacity: 0.12m³ Dimensions: 860x680x530 Weight: 106Kg
4	4 in 1 bucket	Full range	Bucket capacity: 0.14 m ³ Size (mm): 1223x595x 525 Rated loading capacity: 109Kg Weight: 113.6Kg Bucket capacity: 0.12m ³ Size: 860x680x530 Weight: 106Kg	Bucket capacity: 0.14 m³ Dimensions (mm): 1223x595x 525 Rated load: 109Kg Weight: 113.6Kg Bucket capacity: 0.12m³ Dimensions: 860x680x530 Weight: 106Kg
5	Tiller	Full range	Weight: 50.72kg Size (mm): 484x351 x628 Maximum soil loosening depth: 335mm Tooth spacing: 290mm	Weight: 50.72kg Dimensions (mm): 484x351 x628 Maximum loosening depth: 335mm Tooth spacing: 290mm
6	Rock bucket	Full range	Weight: 85kg Size (mm): 635x 1066 x 357 Tooth spacing: 51mm	Weight: 85kg Dimensions (mm): 635x 1066 x 357 Tooth spacing: 51mm
7	Bucket grab		-	-
8	Grass hopper		-	--
9	Soil leveler	Full range	Weight: 72:76kg Size (mm): 1025x1200x390 Flat soil area: 12.3m ³	Weight: 72:76kg Dimensions (mm): 1025x1200x390 Leveling area: 12.3m³

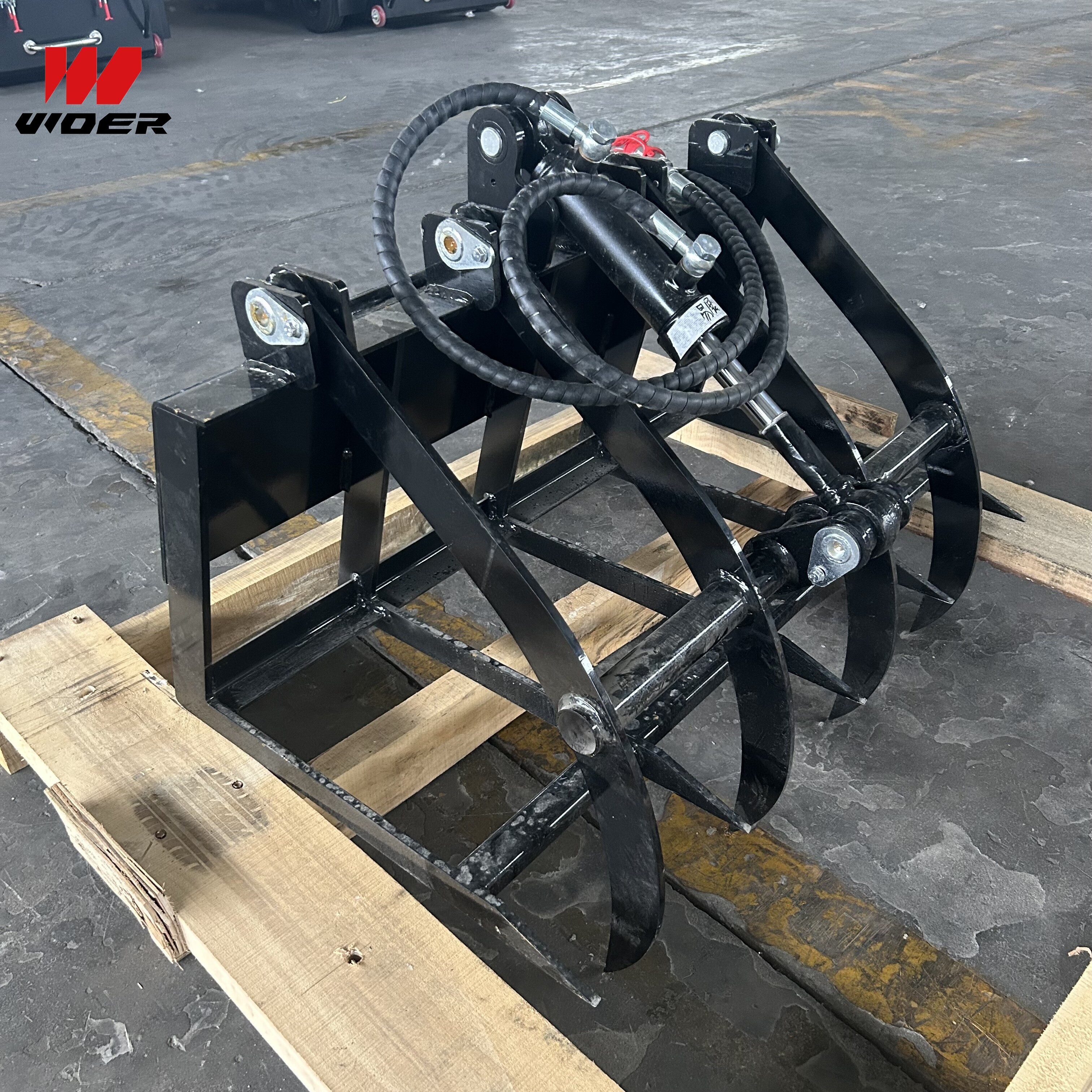

10	Industrial Grapple	Full range	Size (mm): 960x820 x 590 Weight: 125kg Maximum opening angle: 88 ° Volume: 0.4m ³ Rated load capacity: 110Kg	Dimensions (mm): 960x820 x 590 Weight: 125kg Maximum opening angle: 88° Volume: 0.4m³ Rated load: 110Kg

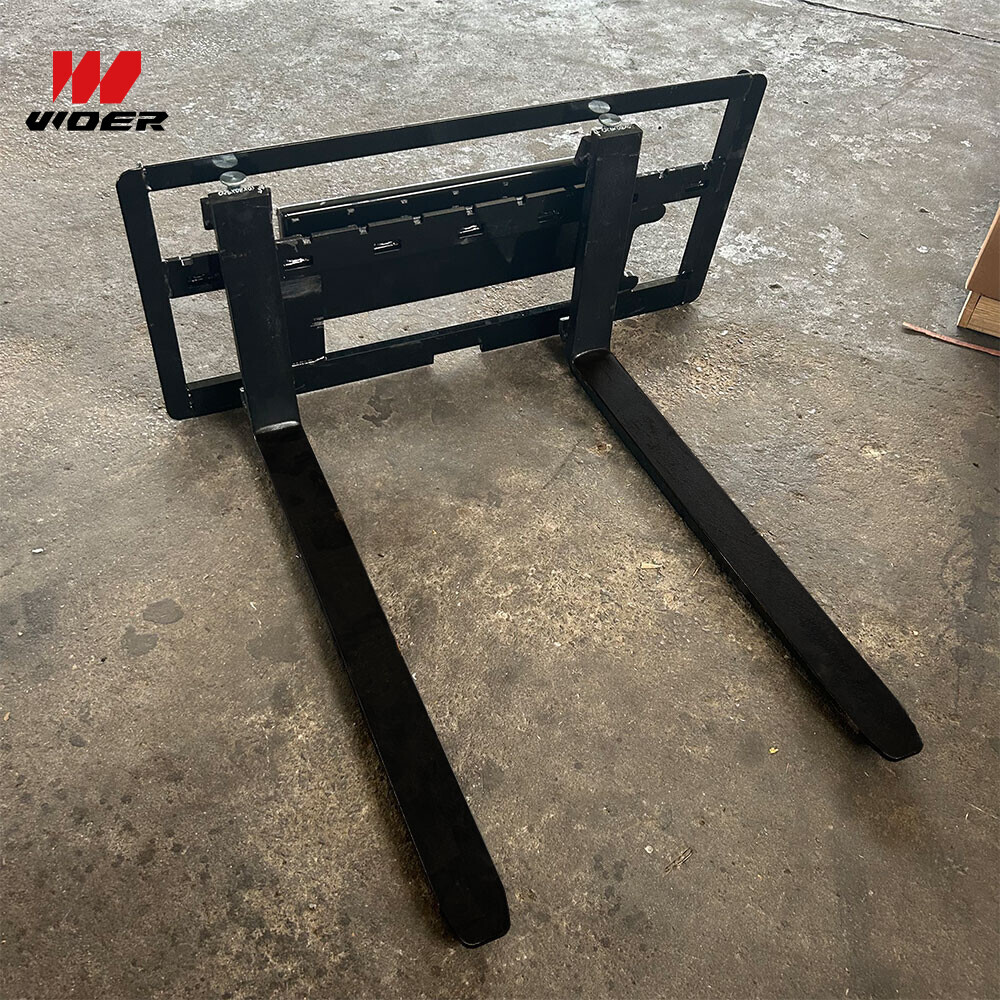

11	FORKS	Full range	Size (mm): 988 x 906 x430 Forklift effective length: 850mm Weight: 85kg Distance between two: 790mm Rated loading capacity: 107Kg	Drill rod diameter: 45mm Dimensions (mm): 1160x900 x400 Weight: 132Kg Pressure: 8-11MPa Impact force: 80-100J
12	Reinforced fork blade	Full range	-	-
13	Side shift fork	Full range	-	-
14	Breaker	Full range	Drill rod diameter: 45mm Size (mm): 1160x900 x400 Weight: 132Kg Pressure: 8-11MPa Impact force: 80-100J	Drill rod diameter: 45mm Dimensions (mm): 1160x900 x400 Weight: 132Kg Pressure: 8-11MPa Impact force: 80-100J
15	Digger	Full range	Size (mm): 545x308x507 Excavation depth: 1667mm Bucket capacity: 0.03m ³ Weight: 123kg	Dimensions (mm): 545x308x507 Digging depth: 1667mm Bucket capacity: 0.03m³ Weight: 123kg
16	Bale Fork	Full range	-	-
17-	Diameter150mm)	Full range	-	-
18	Diameter200mm	Full range	-	-
19	Diameter250mm	Full range	-	-
20	Diameter300mm	Full range	-	Weight:30Kg
21	Diameter400mm	460 series	-	-
22	The mixing bucket with the drill power head motor in the middle position (special power head for spiral rotation) cannot be used	Full range	-	Weight:70Kg
23	Cement mixer	Full range	Size (mm): 1017x762 x550 Weight: 126 Kg Rated loading capacity: 120Kg Maximum mixing capacity: 0.12 m ³	Dimensions (mm): 1017x762 x550 Weight: 126 Kg Rated load: 120Kg Maximum mixing capacity: 0.12 m³
24	Stump wrapped drama	Full range	Spiral drilling rig compatibility: X2500-4500MAX Diameter: 250mm Length: 635mm Wheel hub selection: 65 Circular weight: 25Kg	Auger Compatibility: X2500-4500MAX Diameter: 250mm Length: 635mm Hub Options: 65 Round Weight: 25Kg
25	Drill power head chain type (universal for spiral rotation and mixing)	Full range	Linkable mixing bucket, tree stump planer model: X2500 Oil pressure range: 70-240Bar Torque range: 639-190Nm Oil flow range: 25-57LPM Weight: 60Kg	Can be connected to mixing barrel, stump planer Model: X2500 Oil pressure range: 70-240Bar Torque range: 639-2,190Nm Oil flow range: 25-57LPM Weight: 60Kg
26	High tipping bucket	460 series	Size (mm): 1027x779x518 Weight: 112 Kg Maximum tipping angle: 58 ° Bucket capacity: 0.19m ³ Maximum unloading height: 2060mm Minimum unloading distance: 655mm Rated loading capacity: 140Kg	Dimensions (mm): 1027x779x518 Weight: 112 Kg Maximum tipping angle: 58° Bucket capacity: 0.19m³ Maximum unloading height: 2060mm Minimum unloading distance: 655mm Rated load: 140Kg
27	Mixing bucket	460 series	-	Mixing bucket: length 1300mm, width 600mm, height 530mm, weight 121KG
28	Hedge trimmer	460 series	-	-
29	Lawn Mower	460 series	Size (mm): 1260x 1360x530 Weight: 184K9 Mowing width: 1070mm Mowing height: 25mm-1 00mm Number of blades: 3 Flow rate: 25L/min	Size (mm): 1260x 1360x530 Weight: 184K9 Mowing width: 1070mm Mowing height: 25mm-100mm Number of blades: 3 Flow rate: 25L/min
30	Brush cutter	460 series	-	Dimensions 1270x1290x425mm Mowing width 1200mm Mowing height 20-130 Weight 175KG

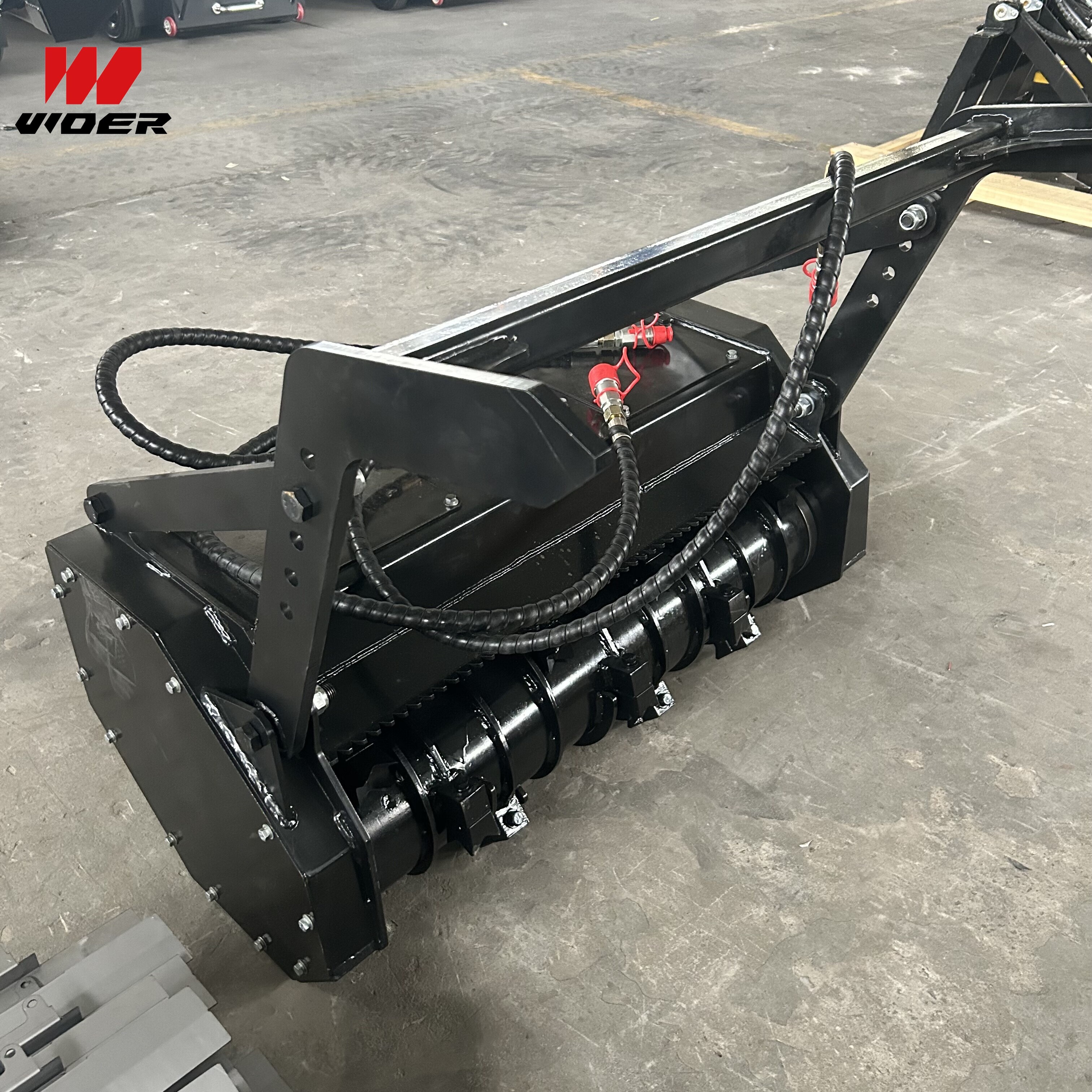

31	Flail Brush Cutter	460 series	-	-
32	Pioneer	460 series	-	Size: 1550850680 (with bracket 900) Motor displacement 25L/r Hydraulic flow 60L/min Pressure 20-25MPa Tool speed 600-2400rpm Working width 1000mm Cutting diameter, <80mm Number of tools 24
33	Branch chipper	460 series	-	-
34	Wood splitter	460 series	-	-
35	Rotating log grapple	460 series	-	-
36	Oscillating Stump Grinder	460 series	Dimensions: 896mm * 620mm * 528mm Maximum stump height: 610mm Maximum cutting depth: 325mm Number of teeth: 16 teeth Self weight: 110kg	Size: 896mm620mm528mm Maximum stump height: 610mm Maximum cutting depth: 325mm Number of teeth: 16 teeth Gear plate diameter is about 35cm Weight: 110kg
37	Backhoe	460 series	Weight: 185kg Maximum excavation depth: 1360mm Maximum excavation radius: 2271mm Bucket capacity: 0.014m ³ Size mm: 1206x1196x1600 Bucket excavation force: 33KN	Weight: 185kg Maximum digging depth: 1360mm Maximum digging radius: 2271mm Bucket capacity: 0.014m³ Dimensions mm: 1206x1196x1600 Bucket digging force: 33KN
38	Trencher	460 series	Size (mm): 1545 x1010x875 Weight: 177 Kg Maximum trench depth: 800mm Single trench width: 155 mm Chain speed: 154m/min	Dimensions (mm): 1545 x1010x875 Weight: 177 Kg Maximum trenching depth: 800mm Single trenching width: 155 mm Chain speed: 154m/min
39	bullgrader	460 series	Weight: 124kg Size (mm): 1285x480x416 Fill width: 1040mm	Weight: 124kg Dimensions (mm): 1285x480x416 Fill width: 1040mm
40	Dirt Rotary Hoe	460 series	Size (mm): 1320 x594 x475 Weight: 98 Kg Working width: 1000mm Working depth: 60-150mm Number of blades: 25	Dimensions (mm): 1320 x594 x475 Weight: 98 Kg Working width: 1000mm Working depth: 60-150mm Number of blades: 25
41	Grassland soil compactor	460 series	Weight: 109kg Size (mm): 1355x750x 610 Soil loosening depth: 105mm Loosening width: 1086mm	Weight: 109kg Dimensions (mm): 1355x750x 610 Loosening depth: 105mm Loosening width: 1086mm
42	Soil Conditioner	460 series	-	-
43	Plate compactor	460 series	-	-
44	Oblique angle cleaner	460 series	Weight: 142kg Size (mm): 1051x1386x558 Brush diameter: 500mm Cleaning width: 1050mm	Weight: 142kg Dimensions (mm): 1051x1386x558 Brush diameter: 500mm Cleaning width: 1050mm
45	Closed cleaning device	460 series	Weight: 197kg Size (mm): 1385x1016x539 Brush diameter: 500mm Cleaning width: 1050mm	Weight: 197kg Dimensions (mm): 1385x1016x539 Brush diameter: 500mm Cleaning width: 1050mm
46	Snow blower	460 series	Size (mm): 1034x777X864 Snow discharge per hour: 40-50 tons Maximum snow removal thickness: 330mm Snow pushing width: 1000mm Maximum snow removal distance: 8-12m Snow pushing adjustment angle: 0-360 °	Size (mm): 1034x777X864 Hourly snow removal: 40-50t Maximum snow removal thickness: 330mm Snow pushing width: 1000mm Maximum snow removal distance: 8-12m Snow pushing adjustment angle: 0-360°
47	Traction device	Full range	Weight: 48.43kg Size (mm): 393x316x 628	Weight: 48.43kg Dimensions (mm): 393x316x 628
48	Lifting device	Full range	Weight: 48.43kg Size (mm): 393x316x 628	Weight: 48.43kg Dimensions (mm): 393x316x 628
49	T360/460 track (one track)T360/460	360/460 crawler	-	-
50	T750 tracks (2 on each side)T750	750	-	-
51	T490 tracks (2 on each side)T490	750	-	-
52	Vacuum Tire	18*8.5-8	-	-
53	solid tire	18*7-8	-	-

Product Display

Packaging and Shipping

Qualification Certificate


Factory Display

FAQ

Q: You are a trader or a manufacture?
A：We are an industry and trade integration business, our factory located on Shandong Jining,and our sales department is in City centre of Jining.
The distance is 30Kms, 0.5 hours.

Q: How about the payment terms?
A:We usually accept T/T or L/C. other terms also could be negotiated.

Q: What is your minimum order?
A: It depends on what you are buying.

Q: What is your delivery time?
A: FOB Qingdao port : 15-30 days . If there are any parts in stock , our delivery time is only 10 days.

Q: What about Quality Control?
A: We have a perfect QC system for the perfect products. A team who will detect the product quality and specification piece carefully, monitoring every production process until packing is complete, to ensure product safety into container.
