How to use a crawler gasoline electric start remote control lawn mower?

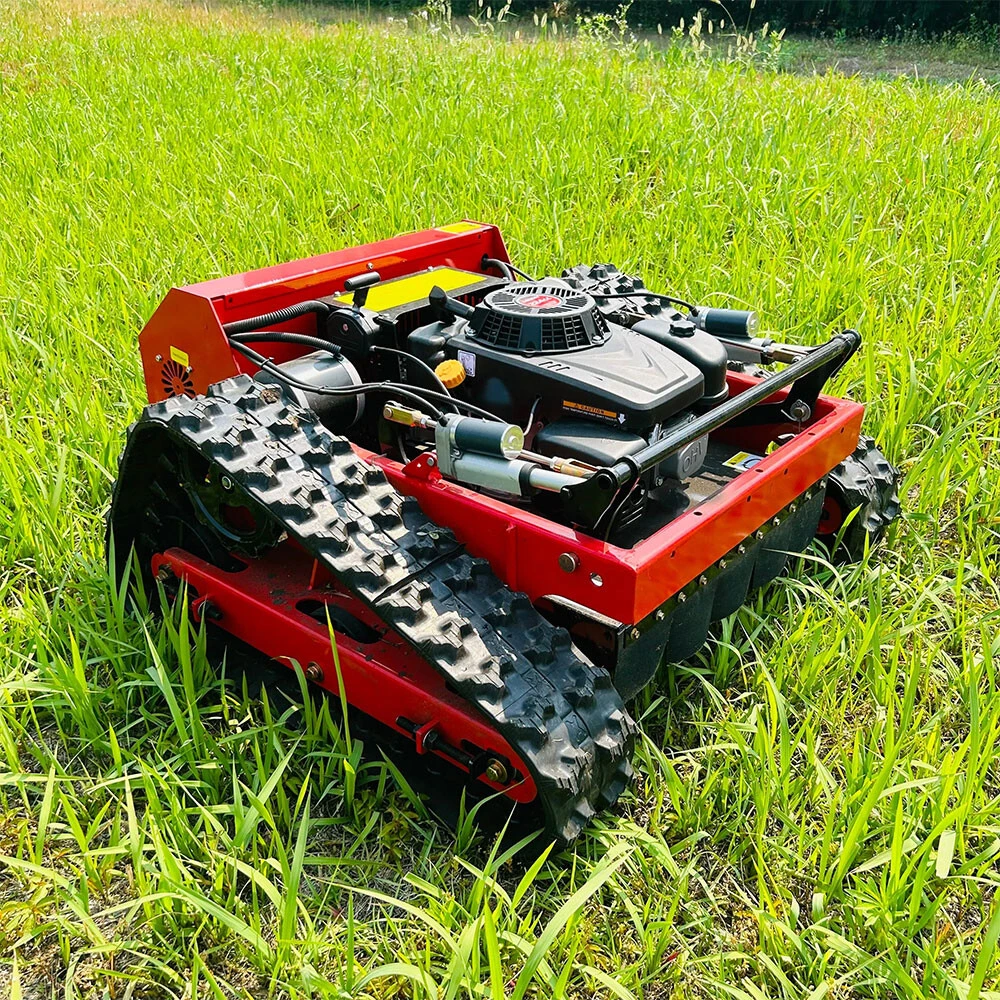

Crawler-type gasoline electric-start remote control lawn mowers combine crawler-type travel (suitable for complex terrain), gasoline power (long battery life), and electric start + remote control operation (convenience). When using a crawler-type lawn mower, you must consider the characteristics of the power system, the crawler-type travel patterns, and the remote control operation specifications. The following is a detailed user guide:

I. Core Preparations Before Use (Key Differences from Ordinary Remote Control Lawn Mowers)

1. Fuel and Electric Start System Inspection

Fuel Filling:

Use the gasoline specified in the instruction manual (usually 92 octane or higher unleaded gasoline). Do not mix diesel or gasoline of different octane ratings.

Electric Start System:

Check the charge of the starting battery (usually a 12V battery). If low, recharge it with a dedicated charger (avoid using a non-included charger).

Test the electric start function: Briefly press the start button and listen for the engine starting sound. If it starts weakly, it may be due to a low battery or carbon deposits on the spark plugs (clean or replace the spark plugs). 2. Track and Terrain Compatibility Check

Track Condition: Check the track tightness (manually adjust the track, allowing it to move up and down 1-2 cm). Too loose will cause it to fall off, while too tight will increase wear. Clear weeds and dirt from the track gaps to ensure the track wheels rotate freely.

Terrain Assessment: While tracked vehicles are suitable for slopes and uneven terrain, it is important to confirm the maximum climbing angle marked on the machine (usually ≤35°) and avoid operating on slopes exceeding a safe angle. Check the ground for sharp objects (such as metal pieces) to prevent scratches on the track.

3. Remote Control and Safety Preparations

Replace the remote control with fresh batteries (or verify the battery level). Test the signal connection to the machine (some models support 2.4G wireless with an effective range of 50-100 meters) to ensure a stable signal within the operating range.

Operators must wear oil- and slip-resistant shoes (to avoid gasoline contamination), long-sleeved work clothes (to protect against grass clippings and oil), and a protective mask (gasoline-powered machines are noisy; earplugs are recommended). Define the operating area, post warning signs, and prohibit unauthorized personnel from entering (gasoline engines are noisier and more dangerous).

II. Operational Procedure (Combining Track and Gasoline Engine Characteristics)

1. Starting and Preheating (Key Steps)

Place the mower on a flat, hard surface (not on grass), ensure there are no obstructions under the blades, and turn off the blade switch (to avoid accidental starting).

Open the fuel valve on the machine (some models have one, turn it clockwise), and adjust the throttle to "Idle" or "Start" (the throttle lever is usually located on the machine or remote control).

Electric Starting: Press and hold the remote control "Start" button or the start button on the machine for 3-5 seconds, then release it after the engine starts. If the engine fails to start, wait 10 seconds before trying again to avoid damaging the motor due to frequent starts.

Preheating: After starting, allow the machine to idle for 2-3 minutes (especially when it is cold) to allow the engine oil to fully lubricate. Observe for any oil leaks or unusual noises (such as knocking or black smoke, which require immediate inspection). 2. Set Cutting Parameters

Adjust the cutting height using the remote control (depending on the turf type, e.g., 4-6 cm stubble for cool-season grass, 3-5 cm for warm-season grass). Tracked machines have a low center of gravity, so you can lower the height appropriately, but make sure the blades don't touch the ground.

Turn on the blade switch (a separate button on the remote control) and confirm that the blades are rotating normally (no stuttering) before moving the machine.

3. Tracked Travel Operation Techniques

For flat ground operation: Use the "straight-and-straight" mode, using the track steering (using the left and right steering buttons on the remote control and the track differential for steering). Slow down when turning to avoid sharp turns that could cause track slippage or turf crushing.

For slope operation:

Travel sideways along the slope (no straight-ahead driving up or down). Track width increases stability, but move slowly and avoid sharp turns.

If the slope approaches the maximum limit, test drive 1-2 meters at the bottom of the slope to confirm track grip (no slippage) before continuing. If slippage is detected, immediately back off to a flatter surface. Complex Terrain: When encountering small rocks or bumps, slightly adjust the direction to avoid them, or drive over them at low speed (ensure the rock height is ≤ the track thickness) to avoid high-speed impact damage to the tracks or blades.

4. Key Monitoring Points During Operation

Pay attention to the fuel level: Gasoline engines typically do not have a battery indicator, but you can estimate it by the operating time (a full tank typically provides 1-3 hours of operation, depending on the load). When the fuel level is low, power will decrease, requiring immediate refueling (the engine must be shut down before refueling).

Listen to the engine sound: A steady roar is normal. If a "thumping" sound (inadequate fuel supply) or unusual noise (loose parts) is heard, immediately stop the machine for inspection and troubleshoot. Resolve the problem before operating again.

Remote Control Distance: Always maintain effective signal range to prevent the machine from losing control. If the signal is lost, some models will automatically shut down, requiring restarting and relocating closer to the machine before operation. III. Post-Operation Maintenance (Special Maintenance for Gasoline and Tracks)

1. Engine Maintenance

After shutting down the engine, wait 10 minutes (to cool down the engine temperature), clean any grass clippings and oil stains from the engine and engine, and check the fuel tank for leaks.

After extended periods of non-use (e.g., more than one week), drain any remaining gasoline from the fuel tank to prevent deterioration and clogging of the oil lines. Run the engine until it automatically shuts off (draining the gasoline from the carburetor).

Check the engine oil level (four-stroke models) regularly (e.g., every 20 hours of use). If insufficient, add special engine oil. Clean or replace the air filter to prevent dust from entering the engine.

2. Track and Blade Maintenance

Thoroughly clean dirt and weeds from the tracks and track wheels. Rinse with clean water, wipe dry, and apply special track lubricant to reduce wear.

Check the blades for wear and sharpen or replace them. Clean any grass clippings from the blade shafts and apply a few drops of lubricating oil to prevent rust. 3. Electric Starter System and Remote Control

The starting battery must be fully charged when stored. Recharge it monthly when not in use for extended periods to prevent depletion.

Remove the batteries from the remote control (when not in use for extended periods), clean any dust from the keypad, and store it in a dry place.

IV. Safety Precautions

Never start the engine in an enclosed space (such as a garage). Gasoline combustion produces carbon monoxide, which can cause poisoning.

When refueling, always turn off the engine. Keep away from open flames and heat sources (such as a recently shut down engine). Avoid static electricity (touch metal before refueling to release static electricity).

When repairing or cleaning the machine, always remove the electric starter key or disconnect the battery to ensure the engine and blades cannot start.

Do not allow children or minors to operate or approach the machine while it is in operation. Operators must remain focused to avoid distractions that could lead to accidents.
